MCX A4

MCX A4 - Manual

  less than a minute

The MCX A4 is a versatile, industrial-grade mini-PC designed for high-performance computing in compact and rugged environments. With its powerful Intel Atom® x7-E3950 Processor. The extended temperature range (-20°C to 70°C) and robust power input make it ideal for challenging industrial use cases.

More detailed information on Industrial PC can be found on the FITPC WIKI

Connecting the MCX A4

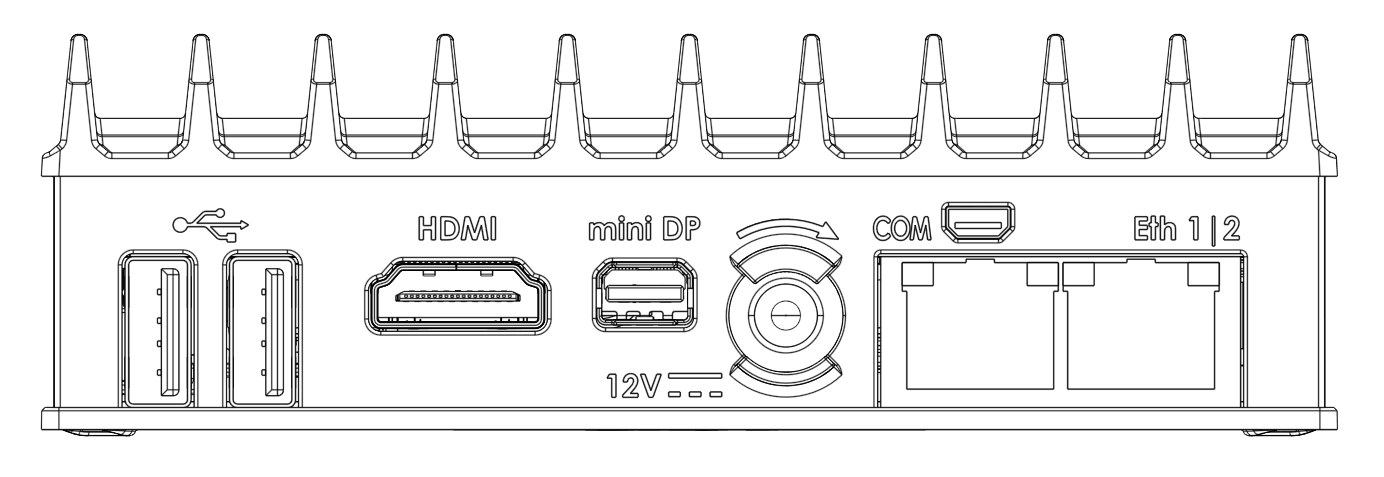

This chapter will explain how to connect the to the MCX A4. All interfaces are located in the front and in the back, the figure below provides an overview of all interfaces:

  • 2x USB 2.0 (White)

  • 1x HDMI

  • 1x mini display port

  • 1x 12v Power connector

  • 1x COM port

  • 2x RJ45 ports Eth1|2

  • 1x power button

  • 2x USB 3.0 (Blue)

  • 1x micro SD slot

    image not found

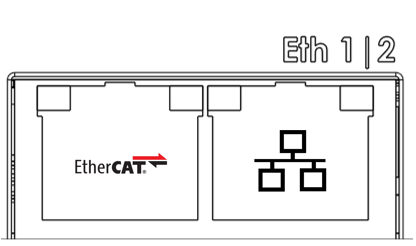

Communication from and to the MCX A4 will go through the RJ45 connectors. Eth1 is configured for Ethercat and Eth2 is configured for ethernet connection.
