MCX A4+

MCX A4+ - Manual

  less than a minute

The MCX A4+ is a versatile, industrial-grade mini-PC designed for high-performance computing in compact and rugged environments. With its powerful Intel Atom® x6425E processor, dual storage options, and flexible expandability, it is perfect for IoT, networking, edge computing, and other demanding applications. The extended temperature range (-20°C to 70°C) and robust power input make it ideal for challenging industrial use cases.

More detailed information on Industrial PC can be found on the FITPC WIKI

Connecting to MCX A4+

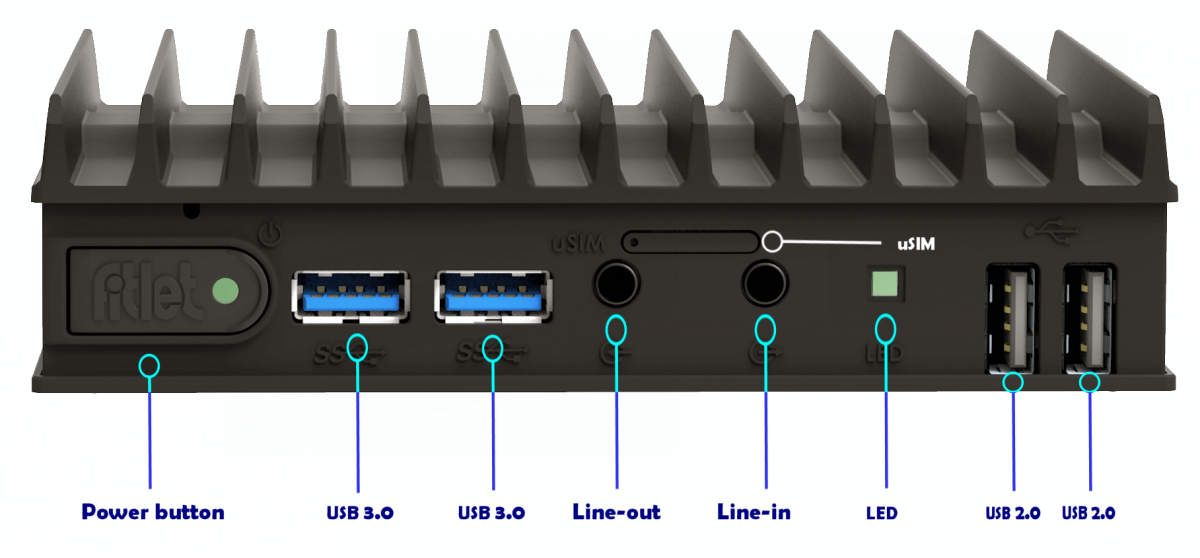

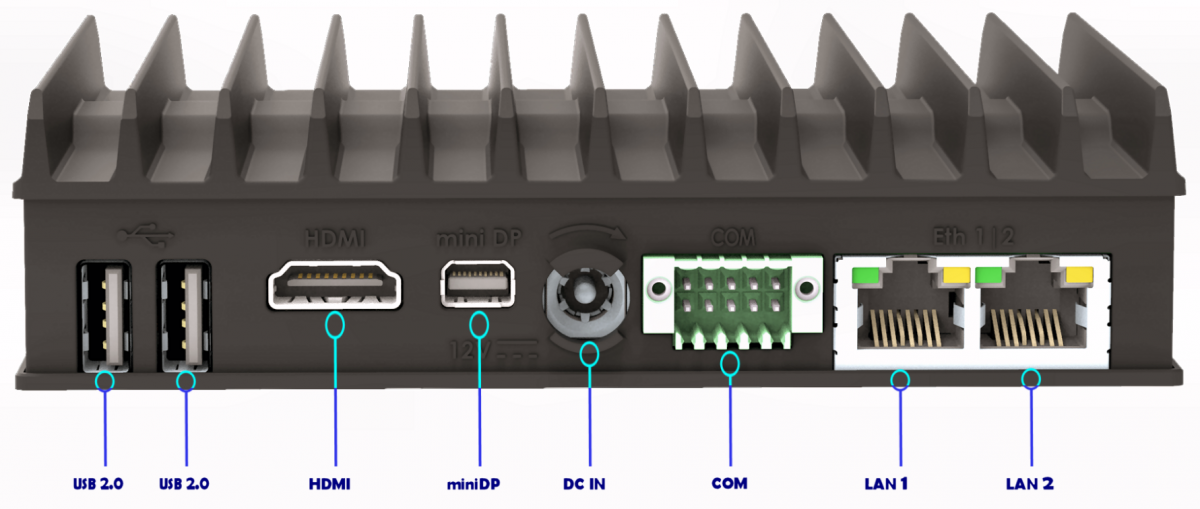

This chapter will explain how to connect the to the MCX A4+. All interfaces are located in the front and back of the device as provided in the overview below:

image not found
image not found

Communication from and to the MCX A4+ will go through the RJ45 connectors. Eth1(LAN1) is configured for ethernet connection and Eth2(LAN2) is configured for etherCAT.
